TN-180BT-A3 Bluetooth Wireless Turntable
Featuring Bluetooth® capability, the TN-180BT-A3 is the easiest way to enjoy vinyl.
THE SIMPLEST WAY TO ENJOY VINYL
The TN-180BT-A3 brings you a totally new way of listening to vinyl records with its Bluetooth® capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth® speakers or headphones you might have for smartphones/tablets are required to enjoy the world of vinyl records.
Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices.
Unlike many budget turntables, the TN-180BT-A3 employs a single wooden board cabinet with high-density MDF to dampen vibrations and provide clearer and richer sound, while 3-speed and auto-return turntable mechanism.
For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT-A3 delivers the true sound of vinyl records. Available in cherry, black and white finish.
The TN-180BT-A3 delivers the sound wirelessly via a built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers or the headphones is made successfully.
If you already have a Bluetooth-enabled speaker or headphones for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready for the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.
The TN-180BT-A3 also provides conventional ways of connecting to your hi-fi system with or without the PHONO input via cable or an RCA audio cable.
AUTHENTIC 3-SPEED TURNTABLE
The TN-180BT-A3 plays LP, EP, and SP records from your library. The tone-arm automatically returns to the original position when playback is done.
*The groove of the SP (78rpm) records is 3 to 4 times wider than the typical 33 1/3rpm records, so it might damage the stylus and cause the noise when you play back the record with the pre-installed stylus. Please keep it limited use.

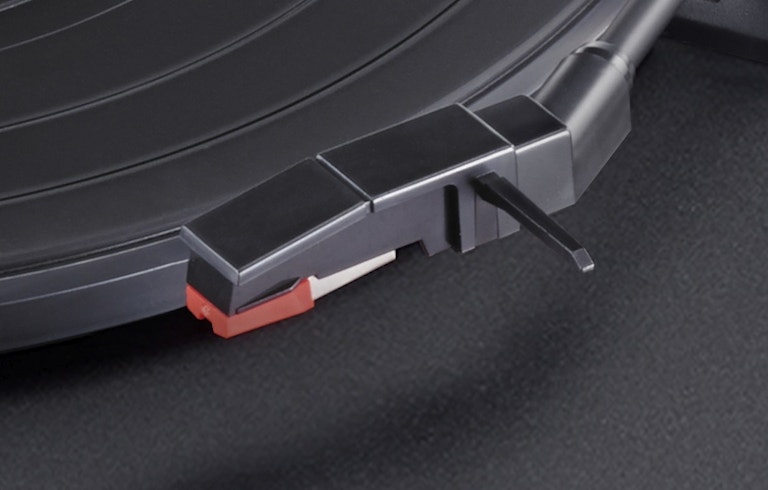

A VM-type (equivalent to MM-type) cartridge AT3600L by Audio-Technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box.
The authentic belt-drive turntable is driven by a high torque DC motor, while a precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.
REAL WOOD CONSTRUCTION
Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
BUILT-IN PHONO EQ AMPLIFIER
Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.
|Speed||33 1/3 RPM, 45 RPM, 78 RPM|
|Wow and Flutter||0.25%|
|Signal-to-Noise Ratio||64dB or higher (A-weighted, 20kHz LPF)|
|Diameter of Platter||12", 30cm|
|Type||Static Balance, Straight|
|Effective Arm Length||7.9", 200mm|
|Stylus Pressure Range||0 to 5g|
|Output Voltage||3.5mV (1 kHz, 5 cm/s)|
|Stylus Replacement||audio-technica ATN3600L|
|Analog Output section|
|Connectors||RCA Pin x 1 pair (Chrome-plated)|
|Range||Approx. 30ft. / 10 meters|
|Power||AC 100 to 240V, 50/60Hz|
|Power Consumption||< 1.5W (< 0.2W at Standby)|
(W x H x D)
|16.5" x 4.1" x 14.0"|
420 x 105 x 356 mm
|Weight||Approx. 10.8 lbs. 4.9 kg|
|Accessories||Rubber Sheet, EP Adapter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)|
